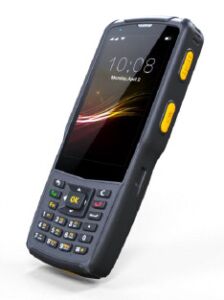

N5S
4G Mobile Terminal
Performance Processor Quad-core 1.45GHz
Operating System Android 7.0
Memory ROM: 16GB RAM: 2GB DDR3
Interface Micro USB2.0, charging interface, 3.5mm Audio jack
Physical Dimensions 172mm*72mm*24.8mm
Weight 330g (including battery)
Display 4”WVGA (800×480) capacitive touch screen
Keypad 28 keys (side keys included)
Audio Microphone/speaker
T-Flash Micro SD card slot (max. 32GB)
Battery capacity 4000mAh
GPS High precision GPS+ AGPS/Beidou System /GLONASS
Expected Battery Life Standby: 500 hours
Scanning: 11 hours of continuous operation (scan once per 6 seconds)
Expected Charge Time 4 hours
Adapter Input: 5V,2A
Environmental Operating Temperature -20°C to 55°C (-4°F to 131°F）
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Humidity 5% to 95% (non-condensing)
Static Discharge ±12 kV (Air discharge), ±8 kV (Direct discharge)
Drop 1.5m drops to concrete (for six sides, one drop per side)
Sealing IP65
Data
collection
1D Barcode Code 39, Codabar, Code 128, Interleaved 2 of 5, UPC, EAN, MSI, ect.
2D Barcode QR Code, PDF417, Data Matrix, MaxiCode, ect.
13.56MHz RFID ISO14443A/B, ISO15693, ISO18000-3, Mifare, FeliCa RF, Kovio, NFC Forum
Type1-4 Tag
Wireless WWAN RADIO 2G: GSM (Band 3/8)
3G: WCDMA (Band 1/8)
CDMA1X, EVDO (Band BC0)
TD-SCDMA (Band 34/39)
4G: LTE FDD (BAND 1/3/7/20)
LTE TDD (BAND 38/39/40/41)
WLAN RADIO 802.11 a/b/g/n, 2.4GHz and 5GHz
WPAN RADIO Bluetooth 4.0, 3.0+HS, 2.1+EDR
Accessories Adapter, cable, hand strap, charging cradle,4-slot battery charger
Certificates
&protection
Laser Safety IEC2/FDAⅡ, IEC60825-/EN60825-1
Certificates CTA, SRRC, CCC, CE-RED, RoHS, NCC, BSMI, MTBF
